SERVO WIRE FEEDER |
|
|
| |
|
|
|
Mechanical Design Features

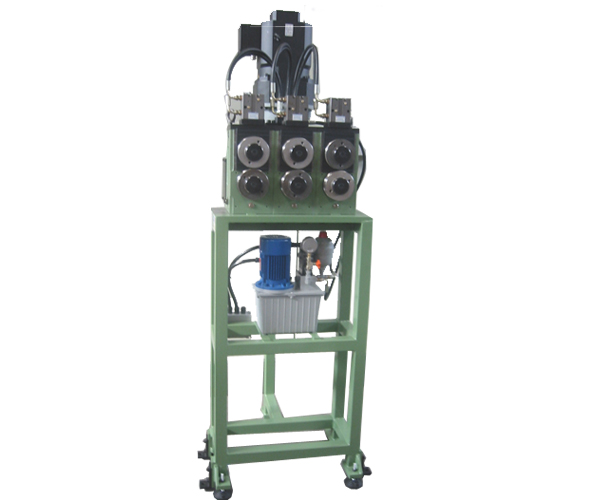

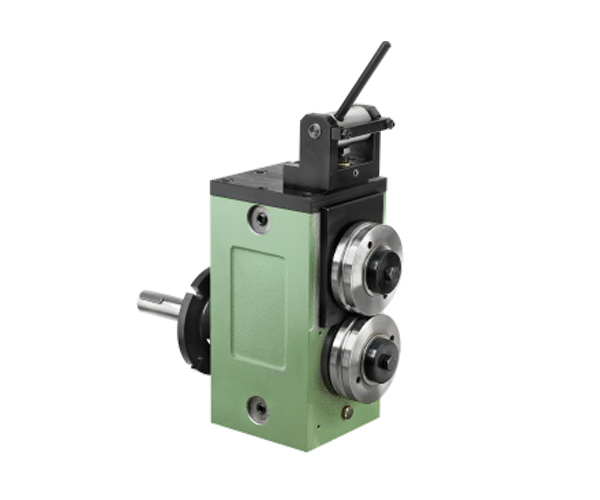

- The Servo Wire Feeder comes with a choice of 1, 2, or 3 Roller Modules
- Add a 2nd and 3rd module when more gripping/driving force is required - more contact points allow more force to be exerted without damaging the wire
- Rollers are easily replaced or changed for different wire shapes and sizes
- Two different grooves can be provided on each roll
- Rolls can be flipped to the opposite orientation and maintain the same center line
- Standard Eccentric Cam exerts roll clamp pressure - Optional Pneumatic or Hydraulic Cylinders available
- Precision Gear Box Ratio 1:10 fixed on lower rolls.
- Upper rolls synchronized by 4 gear at low gap.
|
|
|
| |
|
| Servo System Design Features |
|
- Complete package of Servo Drive, Motor, PLC & HMI from Mitsubishi, Japan.
- High performance Servo Drive
- Low inertia, brushless AC Servo Motor with high energy.
- Digital Servo Drive Manages Roll Motion via Encoder Based Feedback System.
- Closed loop feed length controller automatically generates the velocity of accurate feeding.
- Operator Interface Terminal with Numeric Input Key Pad and LCD Display of feed length, speed and system parameter settings.
- Input power requirement 380VAC / 50Hz / 3 phase.
|
|
| |
|
 |

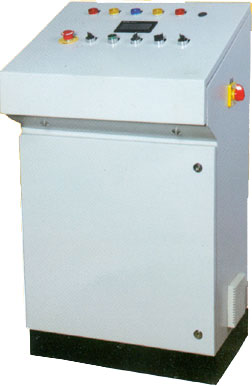

Control Panel Features
The system can be operated in MANUAL / AUTO MODE.
The system can store 99 programs. The programming would have
- Feeding Speed of Material.
- Acceleration of Roll Feed.
- Length setting.
- Part No. (Recipe)
- Batch Quantity.
|
|
| |
|
|
|
|
|
| |
|
