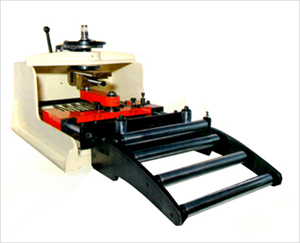

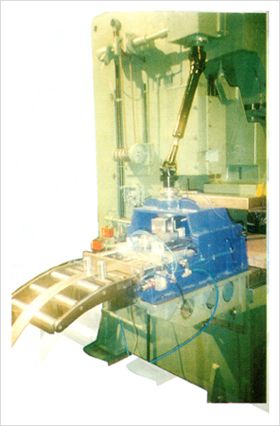

Mechanical Gripper Feeder
Mechanical Gripper Feeder




Mechanical Gripper Feeder are perfect solutions for feeding strips on medium / high speed pressure.

Standard features

  • Round guides with Linear ball bushings.
  • Capability to mount to any type of press.
  • Transmission through bevel gear box and cardian shaft from the press.
  • Lubrication oiling by grease nipple.
  • Accuracy of +-0.025mm with mechanical pilot synchronisation
  • Easy setting of pitch length.
  • All adjustments are easily reachable.
  • Quick opening of the gripper for the strip insertion.
  • Release of the fixed gripper for die piloting in order to obtain & accurate positioning at high speed.
  • Adjustment for various thickness by means f knuckled knobs placed at the upper part of the feed.
  • Standard transmission for speeds uptill 300 strokes per minute including gear box, transmission shaft and rubber coupling.
  • Mounting stand bracket.
  • Cascade roll basket.
.......................
