Single Decoiler

Quality product for coil feeding in Press Feeding Lines
Info Specification Video

Single Decoiler
Single Decoiler

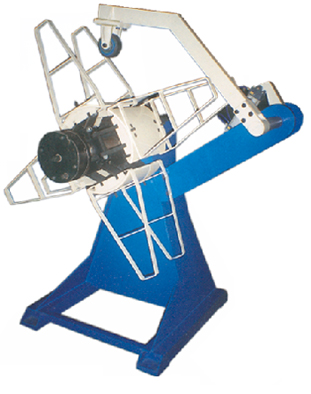

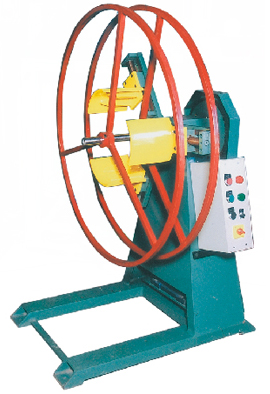

500 kg Motorised Decoiler 2500 kg Decoiler (With Optional Pneumatic Hold-Down)




FEATURES

* Rigid Fabricated Structure.
* Three / Four Self Centering Coil-location jaws. With mechanical gear reducer for     models above 2.5 Tonne.
* The Spindle & Coil holding heads housed in mechanical & precised machined housing     & rotates on dust proofed sealed  bearing element.
* All motorised decoilers are chain driven soft start & stop through  mechanical torque    limiter & friction drag brake.
* Drive System : A.C. Fixed Speed /A.C. Variable Speed (optional)
* Control Panel with Suitable loop control system to maintain loop of coil for the     machine    via Antenna Type loop sensors / limit arm through limit Switches /     Photosensors
.......................
OPTIONS
* All units are available in non motorized version with drag brake.
* Electro Magnetic / Pneumatic Brakes.
* Coil hold-down (hydraulic / pneumatics ) for springy materials.
* Hydraulic Jaws Expansion.
* Decoilers with Shafting & Key to load bobbin.
* Limit arm through limit Switches/Photo sensors.
* Other Special features on request.
