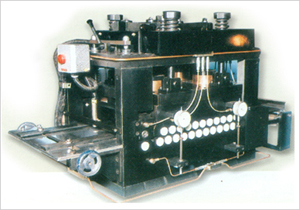

Automatic PLC Controlled Part Leveller for Press Feed
Introduction In the range of sheet metal coil feeding automation, Press Room has been redefining the industry standards
& have brought out precision levellers for straightening of coils, strips, components, sheets.
Why Press Room Levellers are your Profitable Decision...
• Field Experience of more than 15 years.
• Proper Engineering & Design
• Correct Manufacturing process
• Rigid frame work
• Proper material selection & machined to highest dimensional accuracy.
• Right rollers material & right process of manufacturing.
• Best machine rigidity requiring no special foundation.
• Easy access to parts for cleaning & maintenance.
• Proper operator training.
• Trained field technicians to support you for service & application. application.
• Ease of parts/spares availability.
• Single Person handling.
• Free test trials for your components at our test lab.
Standard Features
* Four-high design.
* Manually adjustable back-up rolls
* Small work rolls, hardened/ground/polished
* All Straightening rolls are Powerd.
* Integral universal geared drive.
* Dial guage roll position indicator.
* Oil bath gear case, sealed roll bearings,
* positive lubrication.
*Bolted rugged main frame in one torque resisting assembly.
* Main drive motor for 440V, 3ph, 50 cycle.
*“Run, Jog-Reverse, Stop” controls, Fusible disconnect..
*Automatic central lubrication of work roll bearings.
* Adjustable side guide.
* Straightening accuracy+/- 0.01 to 0.05 is achieved
* Depending on input component conditions, Raw material & hardness, roll setting, thickness variation of components.
* 17/19/21 Straightening rolls.
* Straightening roll diameter from 8mm to 200 mm to cover a wide range of jobs.
Automatic PLC Controlled Part Leveller for Press feed equipment
Optional Features
* Five or six high configuration for one or two side special polished sheet stock, in place of four-high
* Chrome plated work rolls.
* Base for larger pass line
* Slant base for press coil feed operations.
* Variable speed drive and controls.
* Loop control system.
* Powered work roll positioning in place of manual.
* Remote work roll position indicators.
* Cascade rolls at entry or exit.
* Powered pinch rolls.
* Special features on request.
* Motorised adjustment of rolls with digital display.
* 25/31 Straightening rolls.
* CNC Controlled levellers offered.
