4 IN 1 COIL PROCESSING UNIT

Quality product for coil feeding in Press Feeding Lines
Info Specification

Snubber, Width Guide, Roller Support

Snubber, Width Guide,
Roller Support


Roller Threading Arrangement

Roller Threading Arrangement

Coil Car

Coil Car

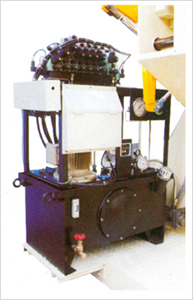

Hydraulic And Valve Arrangement

Hydraulic And Valve Arrangement

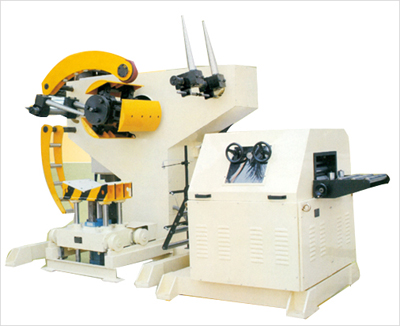

4 IN 1 COIL PROCESSING UNIT

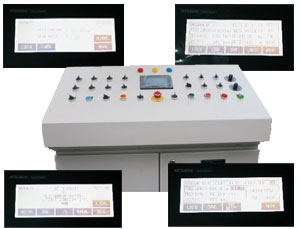

Control Panel With Touch Screen
.......................

Control Panel with Touch Screen Programming for simplicity in Parameters feeding


Heavy duty coil feeding lines for Press Feed equipments
*
Uncoiler with manual / hydraulic jaw expansion and variable drive & loop control system.
*
Straightening and feed rolls hardened and hard chrome plated
*
Roll baskets along with threading table to assist and support the threading of coil material
*
Hydraulic / pneumatic hold-down, snubber and piller for threading is available on request.
*
Optional Coil car is available on request.
*
Coil width guide manual/automatic.
*
Models uptill 1300 mm width and thickness uptill 8 mm is available on request.
*
Feed Height adjustment is provided.
*
Coil tip flattener roller is available on request.
