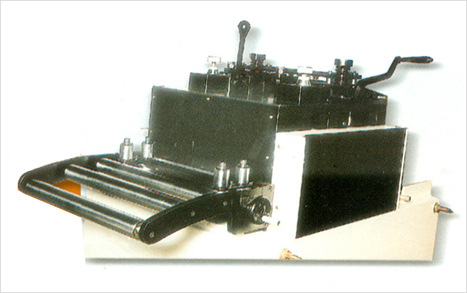

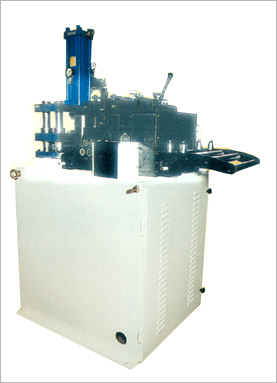

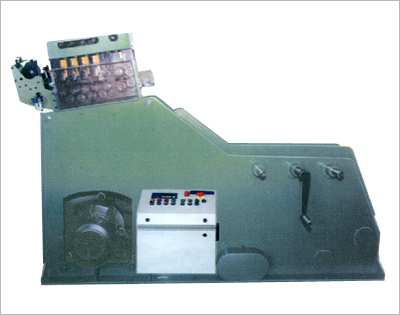

NC SERVO FEEDER STRAIGHTENER

Quality product for coil feeding in Press Feeding Lines

Seeing Global Market Trend of Space Saving In Year 2004, we have introduced following new concepts for Feeding / Straightening / Uncoiling.

.......................

FEATURES

*	Servo feed / straightener models combine a high-performance servo feed with a precision stock straightener.
*	They save a whole lot of shop floor space integrated design eliminates a material loop between feed & straightener
*	Entire straightener & feeding process is easier to set up and control.
*	Straightened material stays straight-stock moves directly from straightening rolls into feed rolls.
*	Fast material speeds-Up to 30 Mtrs./ min
*	Brushless AC servo motor drives spacially designed gear train linking feed and straightening rolls
*	Compact & simple to install available with adjustable mounting bracket.
*	Built in stock entrance roll & adjustable edge guides.
*	Electronic drive components housed in free-standing control console
*	Data entry keypad controls all program functions.
*	Simple program instructions with step-by-step prompts.
*	Easy-to-read lighted visul display.
*	Forward & reverse jog, complete job setup & automatic operating modes.
*	Adjustable ramping speed, fault diagnostics.
*	Full batch & cumulative counting functions.
*	Economical price-quick delivery.
