High Speed Series with Pneumatic Pilot Release
High Speed Series with Pneumatic Pilot release mechanism is suitable for electrical motor stamping & electrical lamination mfg. industries. Special high frequency & high flow solonoid valves are using to achive pilot release at high speed of 24 to 30 mpm.
High Speed Series
Models
Max Width in mm
Max Thickness
Range
in mm
Max Velocity
in mm
PRSF-A-200-HSS
200
0.1-1.0
120
PRSF-A-300-HSS
300
0.1-1.0
120
PRSF-A-400-HSS
400
0.1-0.8
120
High Speed Series with Mechanical Pilot Release
High Speed Series with Mechanical Pilot release is suitable for electrical motor stamping & electrical lamination mfg. industries where line speed is uptil 40 mpm.
High Speed Series with Mechanical Pilot Release
Models
Max Width in mm
Max Thickness
Range
in mm
Max Velocity
in mm
PRSF-B-200-HSS
200
0.1-1.0
120
PRSF-B-300-HSS
300
0.1-1.0
120
PRSF-B-400-HSS
400
0.1-0.8
120
Top High Speed Series
In top High Speed Series, Feed and Pilot release are done by two separate servo motors. This enable to achieve desired line speed uptill 60 mpm with high accuracy.
Top High Speed Series
Models
Max Width in mm
Max Thickness
Range
in mm
Max Velocity
in mm
PRSF-B-200-HSS
200
0.1-1.0
200
PRSF-B-300-HSS
300
0.1-1.0
200
PRSF-B-400-HSS
400
0.1-0.8
200

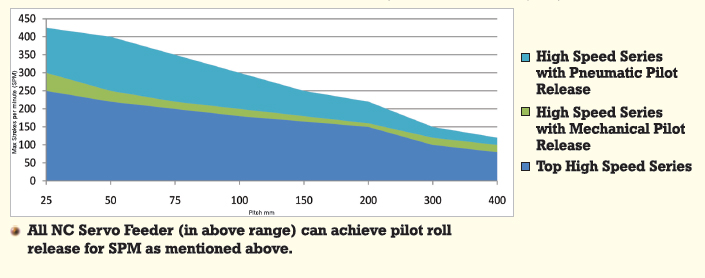

High Speed Series Fedding Rates
Max Stokes per minute in continuous running mode for a feeding angle of 180°
